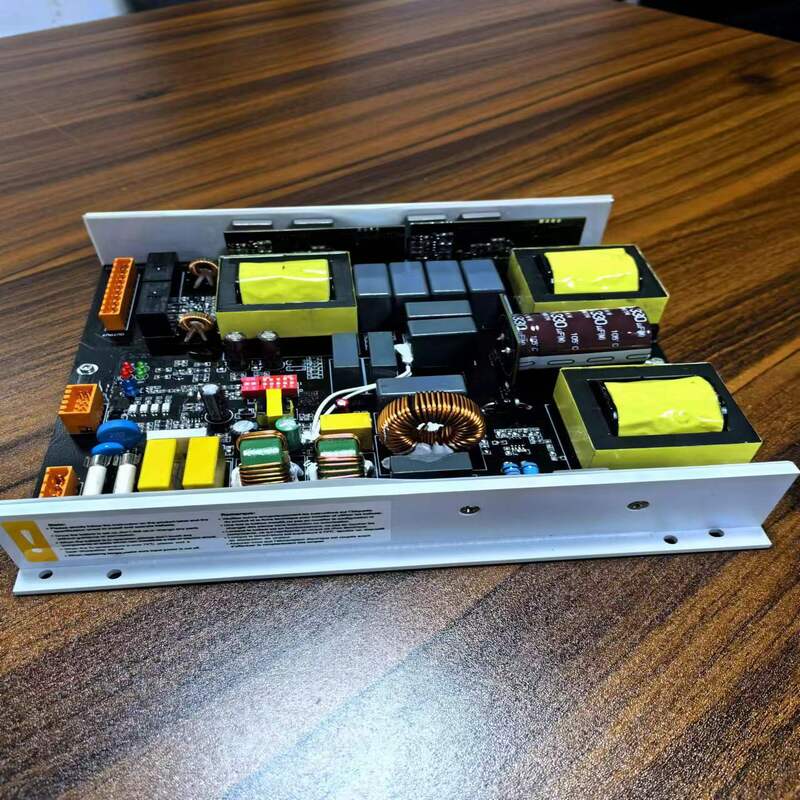

UV ballast model :PH10-2/400W
Electrical Specification
Features & Functions
Input Mains Voltage: 220~277V±10%
Input Line Frequency: 47~63Hz
■Protections: Lamp Open / Fault
Input Current: Max.3.74A at 230Vrms
■Preheat Start Tc-temperature: Max. 70℃
Input Power: 840W
■Limiting Current and Power Ta-temperature: -15~40℃
Power Factor: 0.98 typ.
■Lamp Open Protection Storage: -40~85℃
Output Frequency: >25KHz
■Lamp Fault Protection Approvals: CE ( LVD EMC )
Crest Factor: <1.7
■Status Indication: IP Code: IP00
AC in Current THD: <10% type
►Green, red LED indicate operation status Dimensions:
Preheat Time: 15s
Preheat Current: 4.0A
Output Current: 3.8A typ.
Note
Lamp Power: 2*400W
►Lamp status(Lamp on or Lamp fault) indication
Lamp Type: 400W/3.8A
►When the Tc temperature is over 70℃, please add a heat-dissipation device
Efficiency: 95% Max. load
Status Indication: Green, red LED
Size:240×234×43mm
Load lamp:
Philips TUV 330W XPT
Philips TUV 270W XPT
Philips TUV 325W XPT
Philips TUV 270W XPT HO
